SP API Integration

Mirrored from the SP API Integration engineering doc on Notion. Notion is the draft/iteration surface; this is the shipped copy.

Background

• We use Amazon reports for all the analyses of a seller.
• There is a manual workflow which employs 2 people (Prem and Naresh) to download reports off Amazon, and ingest them into our database using merchantbots.com
• With this project, we intend to replace the manual workflow with the Amazon SP API (Selling Partner API).

Analysis

SP API gives a lot of APIs; the following are the 2 relevant to this project:

• Reports APIs — REST API endpoints to request reports
• Data Kiosk APIs — GraphQL endpoints to request data
• Documents returned by Reports APIs can be of formats: TSV, JSON, JSONL.

Reports we need to ingest

Our Report	SP-API API Type	SP API Equivalent	Finest Granularity Possible	Max lookback period in 1 API call	Max start date	Resettlement periods (sync periods) we require	Number of API calls per day = (sync periods / max lookback per call)	API Docs Notes	API Docs Links	Notes
pnl_sku_economics	Data Kiosk	analytics_economics GraphQL query	Daily	2 years	2 years before	From what we know about ads — max resettlement is 42 days, but we have ads reports for ads data, so 30 days should do	1 with 30 days		datakiosk-schema-explorer: analytics_economics_2024_03_15
br_detail_page_sales_traffic	Reports API	Reports API: GET_SALES_AND_TRAFFIC_REPORT. DataKiosk API: analytics_salesAndTraffic. We choose reports api for simplicity — graphql doesn't offer anything extra	Daily	23 Months	2 years before	30 days — no official doc but a claude chat	1 with 1 day	We need to pull only 1 day because it doesn't give broken down on	report-type-values-analytics#sales-and-traffic-business-report	We need both the reports because we need br_detail_page_sales_traffic for correct session attribution; if we take sessions from br_detail_page_sales_traffic_by_child, every sku gets the same sessions, so the count will be inflated by the number of skus
br_detail_page_sales_traffic_by_child	Reports API	Reports API: GET_SALES_AND_TRAFFIC_REPORT. DataKiosk API: analytics_salesAndTraffic. We choose reports api for simplicity — graphql doesn't offer anything extra. Report Options: child ASIN granularity	Daily	23 Months	2 years before	30 days — no official doc but a claude chat	1 with 1 day	You can request this report up to three times every five minutes per app × seller	report-type-values-analytics#sales-and-traffic-business-report
br_all_orders	Reports API	GET_FLAT_FILE_ALL_ORDERS_DATA_BY_LAST_UPDATE_GENERAL	Order-line / timestamp fields	30 days	2 years before	N.A.	1 with 30 days	GET_FLAT_FILE_ALL_ORDERS_DATA_BY_LAST_UPDATE_GENERAL gives all orders placed / updated in the asked period. Do not use GET_FLAT_FILE_ALL_ORDERS_DATA_BY_ORDER_DATE_GENERAL	report-type-values-order#order-tracking-reports
restock_inventory	Reports API	GET_RESTOCK_INVENTORY_RECOMMENDATIONS_REPORT	Snapshot; schedule daily if needed	N.A.	N.A.	N.A.	1	Check if there is a direct API equivalent
all_listings	Reports API	GET_MERCHANT_LISTINGS_ALL_DATA	Snapshot; schedule daily if needed	N.A.	N.A.	N.A.	1	You can only specify one Amazon store per report.	report-type-values-order#order-tracking-reports
search_query_performance_asin	Reports API	GET_BRAND_ANALYTICS_SEARCH_QUERY_PERFORMANCE_REPORT with ASIN option	Weekly	1 Week	N.A.	2 Days	1	Requests cannot span multiple periods — if weekly, and need 3 weeks → 3 calls per week	report-type-values-analytics#search-query-performance-report
search_query_performance_brand	Reports API	Not Supported	-	-	-	-	-	No direct API equivalent
-	Reports API	GET_FBA_INVENTORY_PLANNING_DATA

Rate Limiting

• SP-API uses a token-bucket rate-limiting algorithm.
• Rate limits are per-operation, and each bucket is scoped by the tuple (operation × application_id × selling_partner × region).
• DataKiosk concurrency limit:
  • Only 1 createQuery per a seller_id × query_type can be IN_PROGRESS
  • In advance_runs, we need to check for this behaviour
  • Meaning, same seller_id but different marketplaces too can't be fired together if any one query is IN_PROGRESS
• Buckets differ across regions because region is part of the scope key. So the physics:
  • all requests for a seller within the NA region share a bucket (per operation)
  • all requests for that seller within the EU region share a separate bucket
  • NA and EU buckets are distinct — even if the underlying seller_id were identical.
• But there are report-specific rate limits too, which override the operation-level rate and burst limits — see Report rate limits overrides (Override bucket) below.

Per-operation rate limits (Generic bucket)

Operation	SP-API API type	Rate (tokens/sec)	Burst (max tokens a bucket can hold)	Time to fill one token (s)	Time to fill the bucket fully (s)	Rate limit model
createReport	Reports	0.0167	15	60	900	application id × seller id
getReport	Reports	2	15	1	15	application id × seller id
getReports (Batch API)	Reports	0.0222	10	46	460	application id × seller id
getReportDocument	Reports	0.0167	15	60	900	application id × seller id
createQuery	DataKiosk	0.0167	15	60	900	application id × seller id
getQuery	DataKiosk	2	15	1	15	application id × seller id
getQueries (Batch API)	DataKiosk	0.0222	10	46	460	application id × seller id
getDocument	DataKiosk	0.0167	15	60	900	application id × seller id

Report rate limits overrides (Override bucket)

Report Name	SP-API API type	Report Type	Rate limit Override	Amazon Docs Link
Detail Page Sales and Traffic	Reports	GET_SALES_AND_TRAFFIC_REPORT	Maximum 3 createReport calls in 5 minutes	report-type-values-analytics#sales-and-traffic-business-report

Components and Responsibilities

1. Ingestion engine

Responsibilities:

• Make a createReport (Reports API) / createQuery (Data Kiosk) call to Amazon
• Poll for report completion
• Once document is ready:
  • If error document: read error document, retry if it can be retried, store the error in the database
  • If success document: ingest data in the database
• Should read the local rate-limiter before every external call and make a call only if it is allowed to by rate limits
• For DataKiosk — we need to set up a concurrency cap:
  • In advance_runs, we need to check for seller_id × query_type concurrency — if concurrency is hit (number of IN_PROGRESS runs = concurrency cap), we should not fire a new createQuery

2. Client side throttling (shared local rate-limiter)

Responsibilities:

• Mimics Amazon's token bucket rate limiter
• Accounts for:
  • Per-operation rate limits (Generic bucket)
  • Report rate limits overrides (Override bucket)
• According to the documented rate limits, keeps filling / reducing tokens
• Since the ingestion engine will run concurrently in an async environment, this rate limiter should be outside of the processes that run the ingestion, in a centralised storage which all the ingestion processes share
• Amazon has separate buckets for the generic bucket and override bucket. Example — the system can make these calls in one window and Amazon won't 429 (tried and tested):
  • 15 calls for non-business reports — createReport (generic bucket)
  • 3 calls for business reports — createReport with report override (override bucket)

Implementation Design

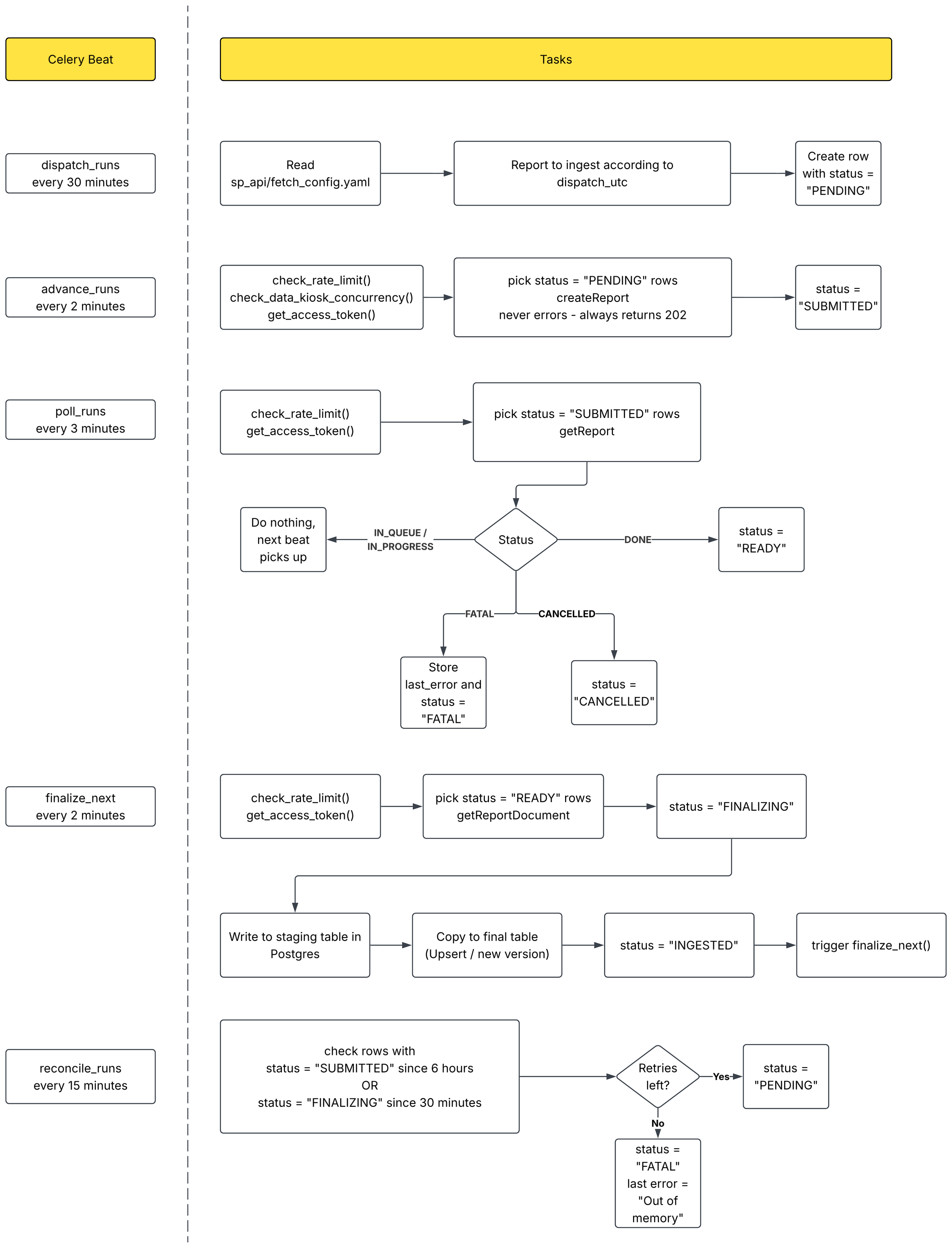

1. Ingestion Engine

Framework:

The ingestion engine relies heavily on celery beat and celery tasks.

• celery beat: to propagate a report from pending to ingestion
• celery tasks: tasks to actually make API calls to amazon / polling / ingestion

Celery config

Queues:

1. report_apis — Shared report-fetch lane for the external report-API engines (SP-API + Amazon Ads). A dedicated queue so their create/poll/finalize backoff sleeps neither block nor are blocked by other work. Carries the LIGHT tasks — dispatch, advance, poll, reconcile, plus check_seller_auth and send_digests. The heavy decode step lives on report_finalize.
2. report_finalize — Dedicated lane for the memory-heavy finalize step (download + gzip decode + upsert) of both engines. Split off report_apis so a decode backlog can't starve advance/poll, and so the worker's --concurrency is itself the hard cap on concurrent decodes (no count-cap code) with its container memory-sized for exactly that work.

Workers (prod, docker-compose.prod.yml):

Worker	Consumes	Concurrency	Memory	Role
worker-report-apis	-Q report_apis	2	1g	Drains the light lane — dispatch/advance/poll/reconcile/auth/digest across both engines.
worker-report-finalize	-Q report_finalize	2	6g	Drains the heavy lane; --concurrency=2 = hard cap of 2 concurrent gzip decodes; 6g sized for that.
worker (main)	-Q default,smartlead,dataforseo,bbb,negative_keywords + --beat	—	—	Owns the Beat scheduler; publishes the SP-API tasks that the two workers above drain. Does not consume the report lanes.

2. Client side throttling (shared local rate-limiter)

• Set up a token-bucketing rate limiter
• The rate limiter will stay in Redis, so every concurrent process reads from and writes to a shared rate limiter
• 2 rate limit buckets:
  1. Generic — operation rate limits bucket
  2. Override bucket — report override rate limit bucket
• If createReport is being called for an overridden report type, the tokens from only the override bucket deplete
• Strategies for consuming tokens:
  1. Generic bucket: set up rate limits with Amazon-documented rate and bursts, consume a token when available
  2. Override bucket: do the math as per the override, figure out the correct rate of filling 1 token, then consume the token whenever available. Example:
     • 3 reports in 5 minutes → rate = calls / seconds = 3/300 = 0.01 → you can make 1 call every 100 seconds.
     • So (rate, burst) = (0.01, 1)
